1759547-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1759547-1
Datasheet:
Description:

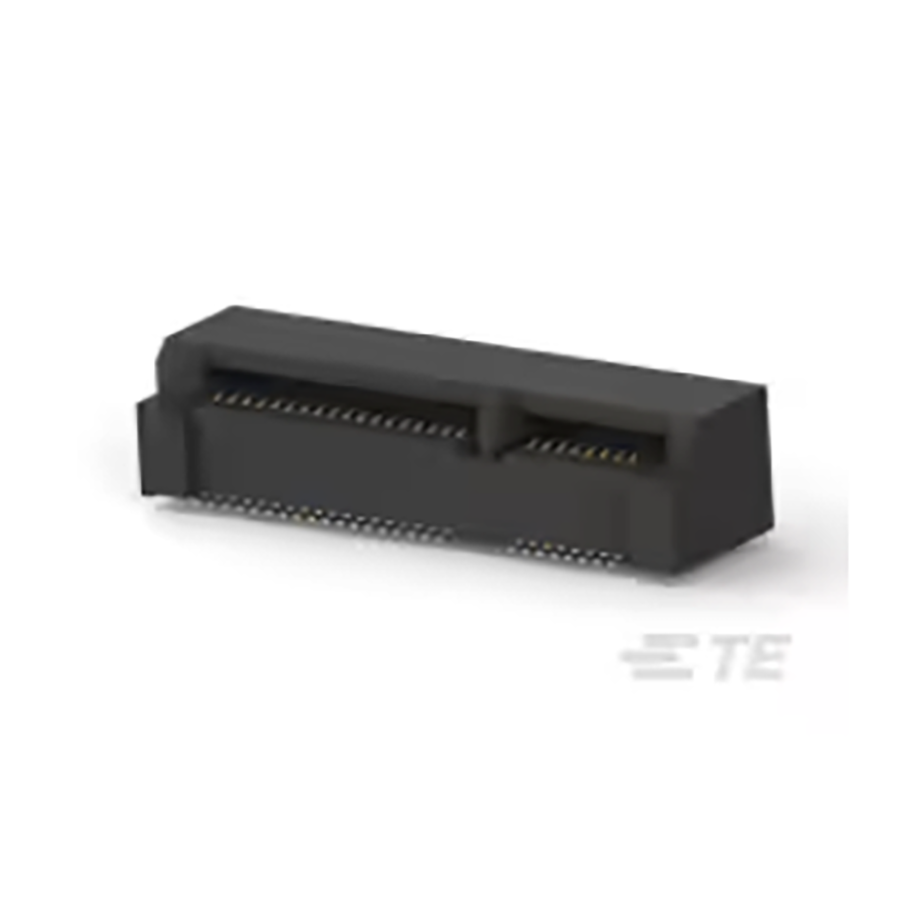

Edgeboard Connectors SMD/SMT Female Right Angle Number of Positions:52
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Female |
| Number of Contacts | 52 |
| Connector Type | Connector |
| Number of Positions | 52 |
| Number of Rows | 2 |
| Card Thickness | 1 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Stack Height | 7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mounting Angle | Right Angle |
| Card Type | PCI Express Mini Card |
Stock: 221
Distributors
pcbx
pcbxUnit Price$2.19840
Ext.Price$2.19840
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.19840 | $2.19840 |
| 10 | $1.90262 | $19.02620 |
| 25 | $1.77432 | $44.35800 |
| 50 | $1.65467 | $82.73350 |
| 100 | $1.54308 | $154.30800 |
| 300 | $1.40492 | $421.47600 |
| 500 | $1.27914 | $639.57000 |
